Automotive Starter Motor: Working Principle, Component Composition, and Function Analysis

What Is an Automotive Starter Motor?

The starter motor is a critical component in vehicles equipped with internal combustion engines. Since the engine cannot rotate by itself to begin the first combustion cycle, the starter motor is required to initiate operation. In simple terms, it provides the initial power needed to start the engine—without it, the engine cannot run.

Mounted on the transmission housing, the starter motor works together with the solenoid as part of the vehicle’s starting system. Its primary function is to crank the engine and provide the initial rotation required for ignition. Once the engine starts running, the starter motor disengages and remains inactive until the next start.

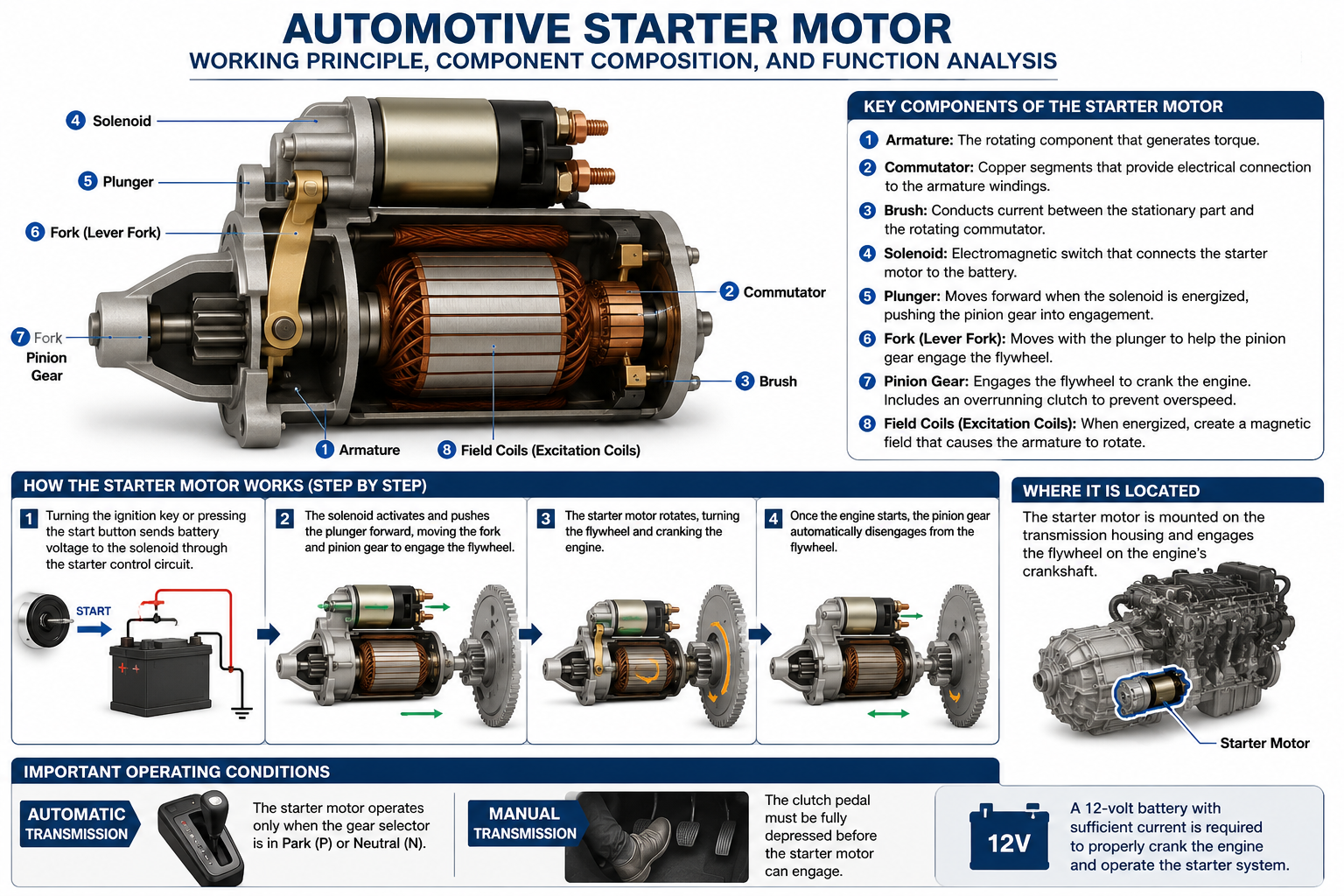

Key Components of the Starter Motor:

Understanding the internal structure of a starter motor helps with diagnosing and maintaining the starting system. Below are the eight essential components:

(1) Armature

The armature is the rotating component of the starter motor, mounted on a shaft and supported by bearings. It consists of a laminated soft iron core wrapped with multiple conductor windings.

(2) Commutator

The commutator is located at the rear of the armature shaft, inside the housing, where it makes contact with the brushes to conduct electricity. It consists of multiple copper segments mounted on the armature shaft, providing electrical connections to the armature windings.

(3) Brush

The brushes are located inside the rear housing and make sliding contact with the commutator to conduct electrical current.

(4) Solenoid

The solenoid consists of two coils of wire wound around a core. It acts as an electromagnetic switch that connects the starter motor to the vehicle’s battery and closes the electrical circuit.

(5) Plunger

The plunger moves forward when the solenoid is energized, pushing the pinion gear into engagement with the flywheel.

(6) Fork (Lever Fork)

The lever fork is connected to the plunger and moves together with it, helping the pinion gear engage with the flywheel.

(7) Pinion Gear

The pinion gear is a small gear assembly containing gears and springs. During startup, it extends outward to mesh with the flywheel, allowing the starter motor to crank the engine. An overrunning clutch is mounted on the pinion assembly to protect the starter from overspeed.

(8) Field Coils (Excitation Coils)

The field coils consist of two or more coils connected in series and secured to the housing with screws. When energized by the battery, they generate a magnetic field that causes the armature to rotate. In some starter motors, permanent magnets are used instead of field coils.

How the Starter Motor Works (Step by Step)

When the starter motor operates, four field windings mounted inside the housing generate a magnetic field. The armature is connected in series with the field coils through carbon brushes.

Working Principle of the Car Starter:

1. With the transmission in Park (automatic) or Neutral (manual), turning the ignition key or pressing the start button allows battery voltage to energize the solenoid through the starter control circuit.

2. The solenoid activates the starter motor and pushes the starter pinion gear forward to engage with the flywheel mounted on the engine’s crankshaft.

3. As the starter motor rotates, it turns the flywheel, causing the crankshaft to rotate and crank the engine.

4. Once the engine starts, the starter gear automatically disengages from the flywheel.

Within the starting system, the solenoid receives positive power directly from the battery and is grounded through the engine body. To crank the engine properly, a 12-volt battery is required, capable of supplying sufficient current to the starter system.

Important Operating Conditions

In vehicles with automatic transmission, the starter motor operates only when the gear selector is in Park or Neutral. In manual transmission vehicles, the clutch pedal must be fully depressed before the starter motor can engage. These safety features help prevent unintended vehicle movement during engine starting.
