A solenoid switch is an integral part of many electrical systems, and you’ll likely encounter it in various applications, from automotive systems to industrial machinery. Though relatively simple in design, the solenoid switch plays a vital role in controlling electrical circuits. If you're curious about what exactly a solenoid switch does, how it works, and where it's used, you've come to the right place.
A solenoid switch is an electrically operated switch that uses an electromagnet to control the opening and closing of a circuit. It is a type of relay, but with specific characteristics designed to handle larger electrical currents. The solenoid switch is often used in situations where mechanical action is needed to control electrical circuits, but it needs to be activated by an electrical signal.
The solenoid switch is made up of three primary components:
The Solenoid: This is the coil of wire that generates a magnetic field when an electrical current passes through it.
The Plunger: A metal rod or plunger that is moved by the magnetic field created by the solenoid.
The Switch Mechanism: A set of contacts that open or close the circuit, triggered by the movement of the plunger.
When electricity is applied to the solenoid, the electromagnetic field it generates moves the plunger, which then activates the switch. The switch opens or closes depending on the design of the solenoid, allowing current to flow to the intended electrical components.
The operation of a solenoid switch is fairly straightforward. It relies on basic electromagnetic principles to create mechanical movement that, in turn, controls an electrical circuit. Here’s a breakdown of the process:
Electric Current Activation: When the solenoid switch is powered on, an electric current flows through the solenoid (the coil of wire). This current generates a magnetic field around the solenoid.
Magnetic Force Moves the Plunger: The magnetic field created by the solenoid attracts the plunger, which is typically made of ferromagnetic material. This attraction causes the plunger to move within the solenoid.
Switching Action: As the plunger moves, it activates the switch mechanism. The plunger’s movement either closes or opens the switch, allowing or interrupting the flow of electricity in the circuit.
Deactivation and Return: Once the current is removed from the solenoid, the magnetic field disappears, and the plunger is returned to its original position by a spring or other mechanical force. This action either keeps the switch open or allows it to reset to its previous position.
The main function of a solenoid switch is to control the flow of electricity in an electrical circuit. Here are the key roles it plays:
Switching High-Current Circuits: Solenoid switches are often used to control high-current circuits, such as those found in vehicles and heavy machinery. A solenoid switch allows a small electrical current to control a much larger current, preventing the need for manual switches or mechanical relays.
Remote Control of Electrical Devices: One of the most useful functions of a solenoid switch is to allow for the remote control of electrical devices. In automotive systems, for example, solenoid switches are used to control the starter motor, allowing the driver to start the engine with a simple turn of the key or push of a button.
Preventing Overload: Solenoid switches can be used to open and close circuits in response to varying electrical loads. If the circuit experiences an overload, the switch will open to disconnect the power, preventing damage to the components.
Automation: In industrial applications, solenoid switches are often used to automate processes. For example, solenoid switches can be used in pneumatic or hydraulic systems to control valves, automatically turning them on and off as needed.
Solenoid switches have a wide variety of applications in both everyday and industrial environments. Some of the most common uses include:

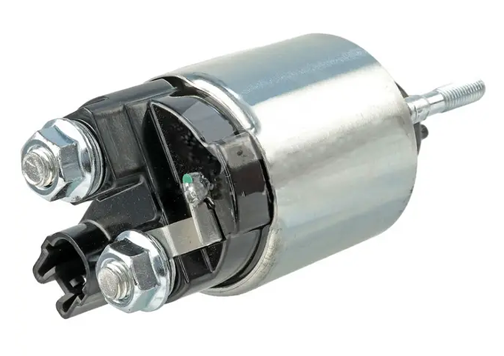

In vehicles, solenoid switches are commonly used in the starting system. The starter solenoid switch is responsible for engaging the starter motor when the ignition key is turned or the start button is pressed. Here’s how it works:
When you turn the ignition key or press the start button, electricity is sent to the starter solenoid.
The solenoid activates, and the plunger is moved, closing the contacts and allowing electrical current to flow to the starter motor.
This action enables the starter motor to crank the engine, starting the car.
Solenoid switches are also used in other automotive systems, such as controlling fuel injection and air conditioning systems.
Solenoid switches are often used in industrial settings to control large machines and automated systems. They are commonly used in factory automation systems, where they control valves, motors, and other heavy machinery components.
For example:
In a pneumatic system, solenoid switches control the flow of air by opening and closing valves.
In hydraulic systems, solenoid switches can be used to control the operation of hydraulic cylinders, which are used in heavy machinery for lifting and moving materials.
In electrical power systems, solenoid switches are used to control high-voltage circuits. For example, they can be used in power distribution systems to open or close circuit breakers, ensuring the safe operation of electrical networks. They can also be found in electric meters and relay systems.
Solenoid switches are sometimes used in household appliances, such as washing machines, refrigerators, and dishwashers. They are used to control water valves, door latches, and other mechanical components that require precise activation and deactivation.
Solenoid switches play a role in security systems, such as automatic locks. When activated, they can lock or unlock doors, providing remote access control in homes or buildings. This is particularly common in electronic locks that allow for keyless entry.
Over time, solenoid switches can wear out or become damaged. A faulty solenoid switch can cause various problems, such as preventing your vehicle from starting or malfunctioning in industrial machinery. Here are some signs that your solenoid switch may need attention:
No Power Flow: If the solenoid switch fails to engage, it will prevent electrical current from flowing to the intended component. This can result in the failure of the system, such as the car failing to start or machinery not operating properly.
Clicking Sound: A clicking sound when trying to engage the solenoid switch is a common symptom of a failing solenoid. This often happens when the contacts inside the solenoid aren’t making a solid connection.
Intermittent Operation: If the solenoid switch only works intermittently, this could be a sign of a worn-out or faulty component. This is common when the switch is exposed to extreme conditions or when it has been used for an extended period.
Visible Damage: In some cases, physical damage to the solenoid switch can be observed. For example, burned or melted contacts, corrosion, or broken components can indicate the need for replacement.
Testing a solenoid switch is relatively simple with the right tools. Here’s how you can test and replace a faulty solenoid switch:
Test the Switch: Use a multimeter to check for continuity across the switch’s contacts. If there is no continuity when the switch is activated, it’s likely faulty.
Check the Voltage: Use a voltmeter to check the voltage across the solenoid. A significant drop in voltage can indicate an issue with the switch.
Replace the Solenoid: If the solenoid switch is confirmed to be faulty, it can be replaced by removing the old one and installing a new one. Ensure that the electrical connections are secure and that the switch is correctly aligned.
A solenoid switch may seem like a small and simple component, but it plays a critical role in controlling electrical circuits and enabling the proper operation of many systems. From automotive applications to industrial machinery, solenoid switches are used in a wide range of devices to manage the flow of electricity, increase safety, and improve automation.
Understanding how a solenoid switch works, its function, and how to recognize signs of failure can help you maintain your electrical systems more effectively. If you're dealing with a faulty solenoid switch, prompt diagnosis and replacement are essential to keeping your vehicle, machinery, or appliance working efficiently.
