The alternator plays a vital role in a vehicle’s electrical system. It supplies electrical power to onboard components and keeps the battery charged while the engine is running. The alternator’s voltage regulator controls the charging voltage, helping ensure a stable power supply under different operating conditions.
A faulty voltage regulator can cause a range of electrical problems, including dim headlights, battery charging issues, and damage to sensitive electronic components. Knowing how to test an alternator voltage regulator can help identify charging system problems and determine whether further inspection or replacement is necessary.
In this guide, we’ll cover common symptoms of a faulty voltage regulator, the tools required for testing, and practical steps for checking alternator charging performance with a digital multimeter.
The alternator converts mechanical energy from the engine into electrical energy to power the vehicle’s electrical systems and recharge the battery. The voltage regulator controls the alternator’s output by adjusting the rotor’s magnetic field, helping maintain the appropriate charging voltage as engine speed and electrical demand change.
Many modern alternators have a built-in voltage regulator, while some older systems use an external regulator. The testing procedure may vary depending on the vehicle and alternator design.
A malfunctioning voltage regulator can affect the entire charging system. Common warning signs include:
Dim or flickering headlights: The charging voltage may fluctuate, causing inconsistent lighting.
Battery charging problems: The battery may remain undercharged or require frequent jump-starts.
Electrical system malfunctions: Dashboard lights, infotainment systems, and other electrical components may behave erratically.
Overcharging or undercharging: Excessively high or low charging voltage may indicate a regulator or another charging system fault.
Battery warning light: The charging system warning light may illuminate while the engine is running.
Unusual heat or a burning smell: Excessive heat or a burning odor near the alternator may indicate an electrical or mechanical problem that requires immediate inspection.
These symptoms do not necessarily mean the voltage regulator has failed. A weak battery, loose connections, damaged wiring, a worn drive belt, or a faulty alternator can produce similar symptoms.
Before testing the alternator voltage regulator, prepare the following tools:
Digital multimeter with DC voltage measurement
Appropriate socket set and screwdrivers, if access or removal is required
Safety glasses and protective gloves
Vehicle service manual or alternator specifications
A digital multimeter is generally sufficient for an initial charging system check. More advanced diagnosis may require a scan tool, an oscilloscope, or dedicated alternator testing equipment.
Park the vehicle on a level surface, engage the parking brake, and keep loose clothing and tools away from moving engine components. Wear appropriate eye protection.
Before disconnecting the battery or removing the alternator, switch off the ignition and follow the vehicle manufacturer’s service procedures. Never disconnect the battery while the engine is running, as this can cause voltage spikes and damage electronic components.
For a basic charging voltage test, the battery usually remains connected. Follow the manufacturer’s instructions and avoid shorting the alternator’s B+ terminal to ground.
Locate the alternator, which is commonly driven by the engine’s serpentine belt. Check the belt condition and tension, electrical connectors, battery terminals, and visible wiring.
Look for loose connections, corrosion, damaged insulation, or signs of overheating. Correct any obvious problems before proceeding with electrical testing.
Set the digital multimeter to DC voltage. Connect the red probe to the battery’s positive terminal and the black probe to the negative terminal.
A fully charged, conventional 12V lead-acid battery typically measures approximately 12.6–12.8V after resting, although the reading varies with battery type, temperature, and state of charge.
If the battery voltage is low, charge and test the battery as necessary before evaluating the alternator. A weak or discharged battery can affect the accuracy of charging system diagnosis.
Start the engine and allow it to stabilize at idle. Measure the voltage directly across the battery terminals, keeping the probes clear of moving parts.
For many conventional 12V charging systems, the voltage may typically fall within approximately 13.5–14.8V under suitable operating conditions. However, the correct range depends on the vehicle, alternator design, battery temperature, electrical load, and charging strategy.
Modern vehicles with smart charging systems may operate outside this range temporarily. Always compare the measured voltage with the vehicle manufacturer’s specifications.
If the initial reading is inconclusive, increase engine speed moderately according to the manufacturer’s testing procedure and monitor the voltage.
Switch on selected electrical loads, such as the headlights and blower motor, if the service procedure calls for a loaded test. Observe whether the charging system responds appropriately.
A healthy charging system should regulate voltage according to its design and operating conditions. Persistent overvoltage, insufficient charging, or unstable readings may indicate a problem with the voltage regulator, alternator, battery, wiring, or control system.
Use the readings alongside the vehicle manufacturer’s specifications to determine the next diagnostic step.
Voltage consistently too high: Check for a faulty regulator, sensing circuit problem, poor electrical connections, or a charging control issue.
Voltage consistently too low: Inspect the drive belt, battery condition, alternator output, wiring, ground connections, and regulator operation.
Voltage fluctuates excessively: Check for loose connections, intermittent wiring faults, belt slippage, alternator defects, or smart charging system behavior.
Voltage appears normal: The basic charging test is satisfactory, but it does not rule out intermittent faults or problems that occur under load.
Do not replace the voltage regulator based on a single voltage reading. Further testing may be necessary to identify the actual cause.
If the charging voltage is outside the specified range, additional diagnostic procedures can help isolate the fault.
Voltage drop test: Measure voltage drop across the positive charging cable and ground path under the prescribed operating conditions. Excessive voltage drop can indicate resistance caused by loose connections, corrosion, or damaged wiring.
Alternator output test: Check the alternator’s output under a controlled electrical load using suitable testing equipment. This helps determine whether the alternator can supply the required current.
AC ripple test: Measure AC ripple at the battery or alternator output using an appropriate multimeter or oscilloscope. Excessive ripple may indicate a faulty rectifier diode or stator winding problem, rather than a voltage regulator fault alone.
Regulator-specific test: Where applicable, use the manufacturer’s diagnostic procedure, scan tool, or alternator test bench to evaluate regulator operation and charging control signals.
A standard test light is not a reliable standalone method for confirming voltage regulator performance. A multimeter and the correct service specifications provide more useful diagnostic information.
Replacement may be necessary when testing confirms that the regulator is not controlling charging voltage correctly and other potential causes have been ruled out.

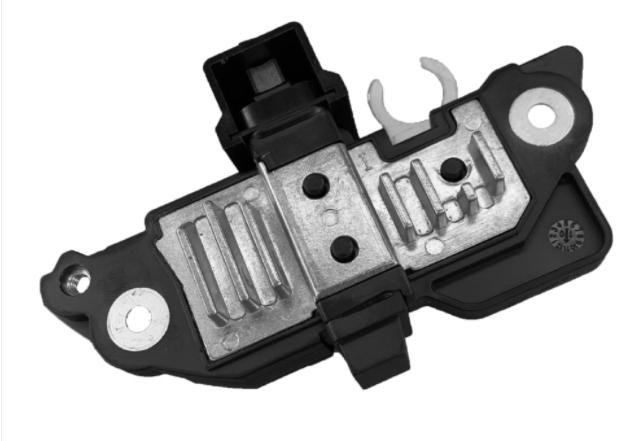

On alternators with a separately serviceable regulator, the regulator may be replaceable without replacing the entire alternator. On other designs, the regulator may be integrated into the alternator assembly, making repair or replacement dependent on the specific model.
Before ordering a replacement, verify the original equipment (OE) part number, alternator model, connector configuration, and vehicle application. Components that look similar may not be interchangeable.
Testing an alternator voltage regulator is an important step in diagnosing vehicle charging system problems. By inspecting the charging system, measuring battery and charging voltage, and performing additional tests when necessary, you can narrow down the cause of overcharging, undercharging, and unstable electrical performance.
Accurate diagnosis depends on the vehicle manufacturer’s specifications and the alternator’s design. If the results remain inconclusive, consult a qualified automotive technician or use professional alternator testing equipment.
For replacement components, selecting the correct voltage regulator for the specific alternator application is essential for reliable charging performance and long-term service life.
