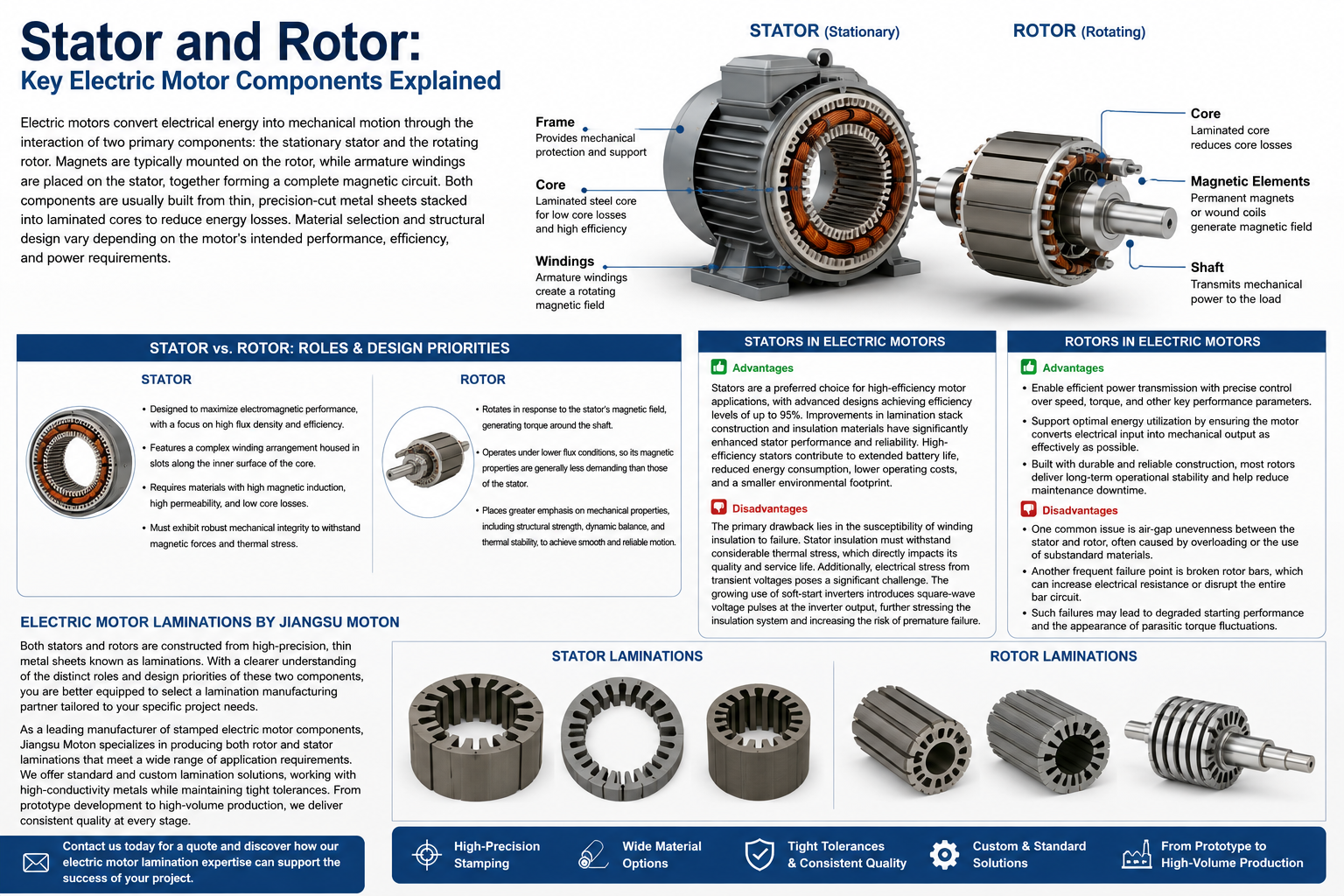

Stator and Rotor: Key Electric Motor Components Explained

Electric motors convert electrical energy into mechanical motion through the interaction of two primary components: the stationary stator and the rotating rotor. Magnets are typically mounted on the rotor, while armature windings are placed on the stator, together forming a complete magnetic circuit. Both components are usually built from thin, precision-cut metal sheets stacked into laminated cores to reduce energy losses. Material selection and structural design vary depending on the motor's intended performance, efficiency, and power requirements.

What Is a Stator?

The stator is the stationary part of the motor that enables energy transfer to or from the rotor. When supplied with alternating current (AC), it generates a rotating magnetic field that interacts with the rotor to produce mechanical motion. A typical stator consists of three main parts: the frame, the core, and the windings.

Beyond motors, the stator serves different functions in other applications. In generators, it converts a rotating electromagnetic field into electrical current. In fluid-driven systems, it directs the flow of fluid entering and exiting the rotor. Stators are commonly constructed from iron, steel, or printed circuit boards (PCBs). PCB stators are particularly well-suited for low-power applications due to their advantages in size, weight, and acoustic noise reduction.

What Is a Rotor?

The rotor is the moving part of the motor, responsible for converting electrical energy into mechanical motion through its interaction with the stator's magnetic field. Positioned on the motor shaft and enclosed within the stator, the rotor can be constructed using either wound wire coils or permanent magnets. Its rotation is driven by electromagnetic interaction, which generates the torque needed to turn the shaft. A rotor typically comprises three primary elements: the core, the shaft, and the winding (or magnetic elements in the case of permanent-magnet rotors).

Stator vs. Rotor: What Are Their Roles and Design Priorities?

While the most obvious difference is that the stator remains stationary and the rotor rotates, several other key distinctions define their respective design requirements.

Stator

•Designed to maximize electromagnetic performance, with a focus on high flux density and efficiency.

•Features a complex winding arrangement housed in slots along the inner surface of the core.

•Requires materials with high magnetic induction, high permeability, and low core losses.

•Must exhibit robust mechanical integrity to withstand magnetic forces and thermal stress.

Rotor

•Rotates in response to the stator's magnetic field, generating torque around the shaft.

•Operates under lower flux conditions, so its magnetic properties are generally less demanding than those of the stator.

•Places greater emphasis on mechanical properties, including structural strength, dynamic balance, and thermal stability, to achieve smooth and reliable motion.

Stators in Electric Motors: What Are the Pros and Cons?

Advantages

Stators are a preferred choice for high-efficiency motor applications, with advanced designs achieving efficiency levels of up to 95%. Improvements in lamination stack construction and insulation materials have significantly enhanced stator performance and reliability. High-efficiency stators contribute to extended battery life, reduced energy consumption, lower operating costs, and a smaller environmental footprint.

Disadvantages

The primary drawback lies in the susceptibility of winding insulation to failure. Stator insulation must withstand considerable thermal stress, which directly impacts its quality and service life. Additionally, electrical stress from transient voltages poses a significant challenge. The growing use of soft-start inverters introduces square-wave voltage pulses at the inverter output, further stressing the insulation system and increasing the risk of premature failure.

What Are the Pros and Cons of Rotors in Electric Motors?

Advantages

•Enable efficient power transmission with precise control over speed, torque, and other key performance parameters.

•Support optimal energy utilization by ensuring the motor converts electrical input into mechanical output as effectively as possible.

•Built with durable and reliable construction, most rotors deliver long-term operational stability and help reduce maintenance downtime.

Disadvantages

•One common issue is air-gap unevenness between the stator and rotor, often caused by overloading or the use of substandard materials.

•Another frequent failure point is broken rotor bars, which can increase electrical resistance or disrupt the entire bar circuit.

•Such failures may lead to degraded starting performance and the appearance of parasitic torque fluctuations.

Electric Motor Laminations by Jiangsu Moton

Both stators and rotors are constructed from high-precision, thin metal sheets known as laminations. With a clearer understanding of the distinct roles and design priorities of these two components, you are better equipped to select a lamination manufacturing partner tailored to your specific project needs.

As a leading manufacturer of stamped electric motor components, Jiangsu Moton specializes in producing both rotor and stator laminations that meet a wide range of application requirements. We offer standard and custom lamination solutions, working with high-conductivity metals while maintaining tight tolerances. From prototype development to high-volume production, we deliver consistent quality at every stage.
