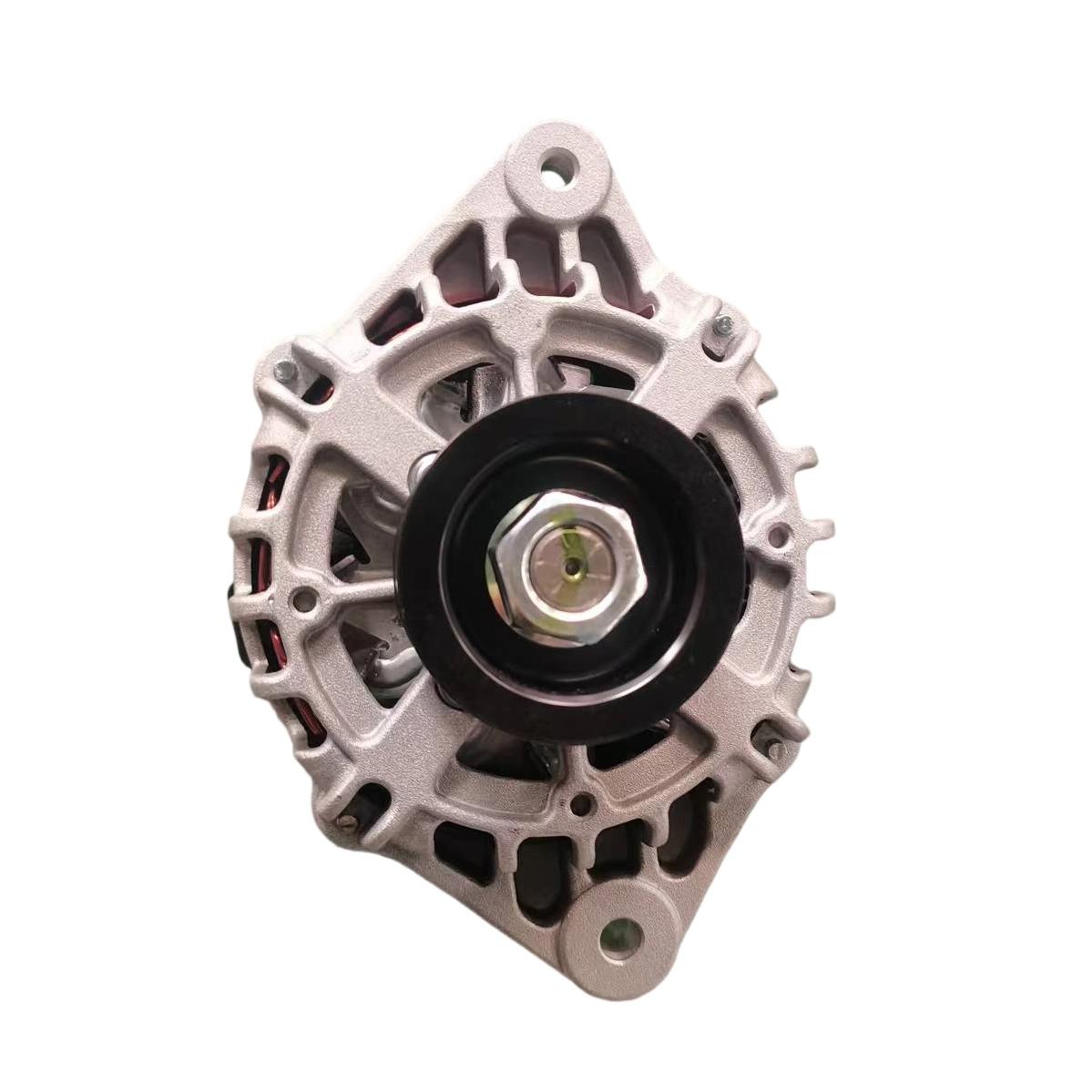

The Easiest Way to Test an Alternator: Check the output voltage
Many instrument clusters feature built-in voltmeters, and some vehicles have dashboard warning lights that illuminate when alternator output falls below a predetermined threshold. Checking your alternator's voltage output with a handheld voltmeter is nearly just as simple. However, voltage readings alone don't reveal the full picture.
While dashboard warnings and voltmeters are convenient, the convenience comes by sacrificing completeness. Factory-installed instrument cluster voltmeters may display inaccurate or faulty readings.
Our Best Recommendation:
Never depend exclusively on built in monitors.
Your business incurs greater financial losses from roadside alternator failures than from conducting regular end-of-service voltage output testing.
Measure alternator output voltage with the engine running and all electrical accessories turned off.
You can check the alternator output at the battery only as part of a complete diagnostic evaluation.
Where to Connect Your Voltmeter for Testing
Connect the voltmeter's red (positive) lead to the alternator's positive output terminal.
Connect the voltmeter's black (negative) lead to any verified ground point, excluding the alternator housing.
Proper alternator output voltage should measure between 13.8-14.5 volts (typically ~14V) with the engine running.
When testing under identical conditions, the voltage differential between alternator output and battery terminals should not exceed 0.5 volts.
Voltage readings exceeding 4 volts above specification indicate potential voltage regulator failure requiring repair or replacement. Conversely, low output voltage suggests alternator deterioration and impending failure.
Low voltage output may result from:
Corroded or loose electrical connections
Insufficient drive belt tension
Suboptimal engine idle speed
Inadequate grounding
Alternator Amperage Output Verification Test
Always perform both voltage and current output tests when evaluating alternator performance.
Test Procedures:
Secure the clamp of the ammeter around the alternator's positive output cable (B+ terminal wire).
Connect the carbon pile tester leads to the battery terminals, ensuring proper polarity (red to positive, black to negative).
Zero out the ammeter (connect as previously specified, keeping the vehicle ignition off and pressing the zero/null function button).
Start the vehicle and maintain a steady 1,500 RPM for accurate measurements.
With the engine maintained at test RPM, the carbon pile can simulate an electrical load.
The alternator output should increase, and the ammeter reading should register close to the alternator's amp rating.
Conclusion
Bad habits happen, so it’s important to refresh your training and methods every year.
If you find your alternator(s) need replacement, place a bulk order for new units to avoid vehicle downtime and lost productivity.
