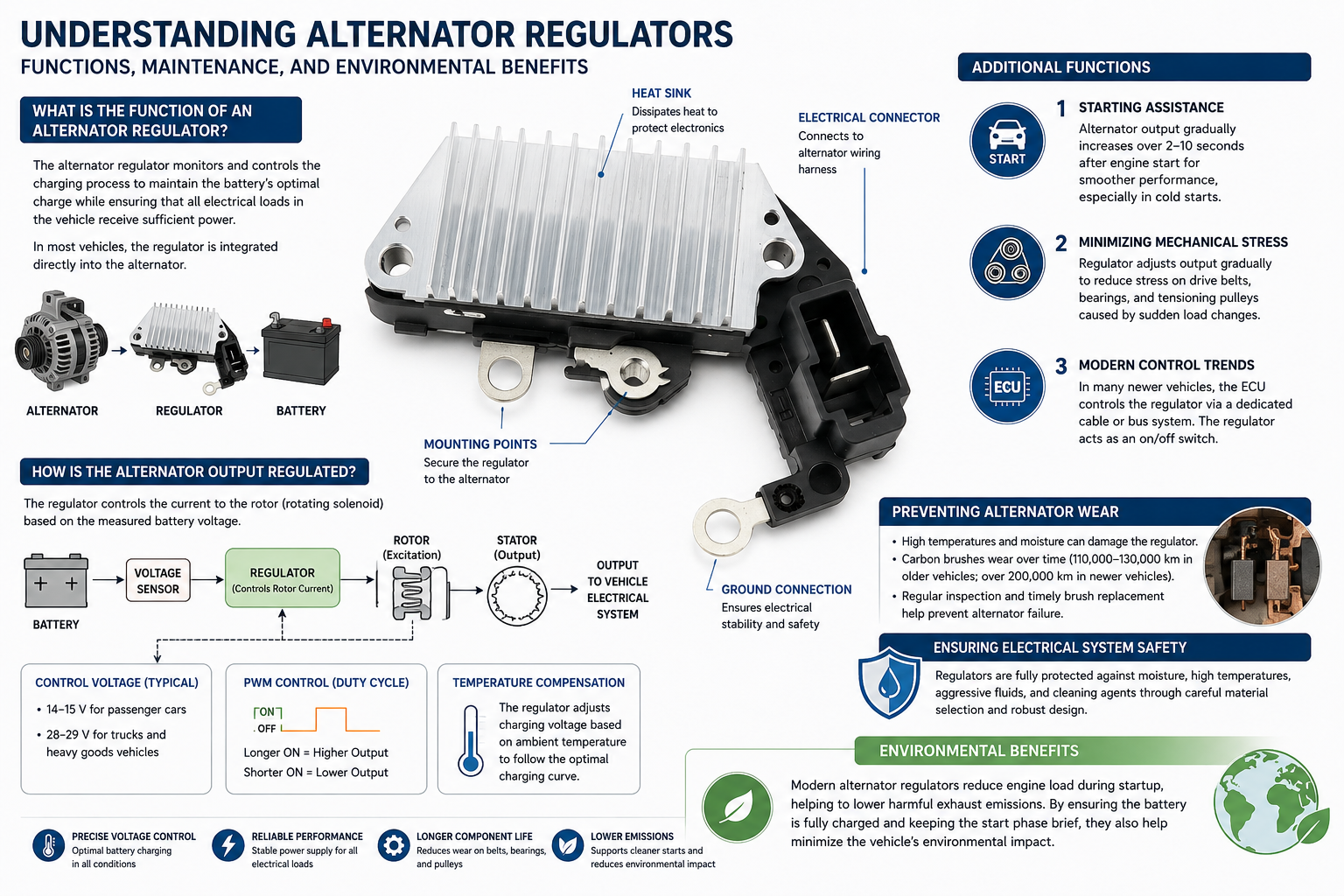

Understanding Alternator Regulators: Functions, Maintenance, and Environmental Benefits

What Is the Function of an Alternator Regulator?

A fully charged car battery is essential for reliable vehicle operation. The alternator regulator monitors and controls the charging process to maintain the battery’s optimal charge while ensuring that all electrical loads in the vehicle receive sufficient power. In most vehicles, the alternator regulator is integrated directly into the alternator. Due to the wide variety of alternator power ratings and numerous manufacturers, several hundred different types of regulators are now available.

How Is the Alternator Output Regulated?

The key factor in controlling alternator output is the current flowing through the rotor (the rotating solenoid). This current adjusts the magnetic field and is precisely managed by the alternator regulator based on the continuously measured battery voltage. Measurements occur several hundred times per second, allowing the system to quickly compensate for any changes in battery charge.

For effective battery charging, the alternator voltage must always be slightly higher than the battery voltage. According to manufacturer specifications, the control voltage is typically:

• 14–15 V for passenger cars

• 28–29 V for trucks and heavy goods vehicles

Instead of varying the rotor current continuously, the regulator controls output using a duty cycle—switching the current on and off for varying lengths of time. A longer “on” period with a short “off” time increases alternator output, while a shorter “on” period and longer “off” time reduce output.

The alternator regulator also automatically adjusts the battery charge according to ambient temperature. This is important because a battery’s charging characteristics differ significantly between -20 °C and +30 °C. Following a temperature-dependent charging curve, defined in the manufacturer’s data as a temperature coefficient, ensures the battery is charged safely and efficiently under all conditions.

Additional Functions of Alternator Regulators

Modern alternator regulators perform several functions beyond battery charging:

1. Starting Assistance

During engine start, the alternator initially remains off. Once the engine is running, the alternator output gradually increases over 2–10 seconds following a gently ascending charging curve. This is particularly beneficial for cold starts or when the battery is partially discharged.

2. Minimizing Mechanical Stress

The regulator reduces stress on:

• Drive belts

• Bearings

• Alternator tensioning pulleys

Electrical load changes—such as switching on headlights, heated seats, or other systems—cause the alternator regulator to adjust output gradually. Without this feature, sudden changes in output could stress mechanical components.

3. Modern Control Trends

In many newer vehicles, the battery voltage is no longer monitored directly by the alternator regulator. Instead, the engine control unit (ECU) manages it, communicating with the regulator via a dedicated cable or vehicle bus system. In these cases, the regulator functions more like a simple on/off switch.

Preventing Alternator Wear

Although alternator regulators are designed to be maintenance-free, they can be damaged by:

• Excessively high temperatures

• Moisture ingress through cracks

Additionally, carbon brushes—which maintain contact with the rotor’s copper slip rings—wear down over time. In older vehicles, brushes typically last 110,000–130,000 km, while in newer vehicles, they can exceed 200,000 km. Regular inspection and timely replacement of carbon brushes during servicing help prevent alternator failure. In some cases, replacing the entire alternator is necessary if damage occurs.

Ensuring Electrical System Safety

The alternator regulator is exposed to significant external influences and mechanical wear. High temperatures, moisture, aggressive fluids (including salt water), and cleaning agents must not compromise its function. Therefore, manufacturers carefully select materials and provide complete protection of the electronics against moisture from the design stage.

Environmental Benefits of Modern Alternator Regulators

Modern alternator regulators reduce engine load during startup, helping to lower harmful exhaust emissions. By ensuring the battery is fully charged and keeping the start phase brief, they also help minimize the vehicle’s environmental impact.
